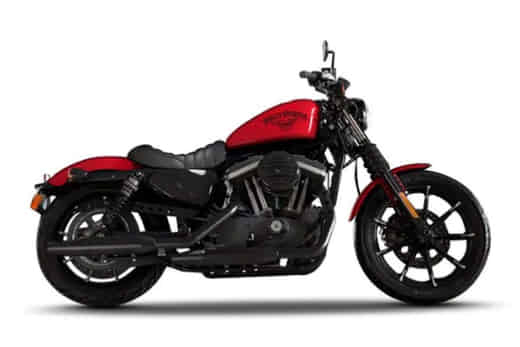

Harley-Davidson Iron 883 Specifications

Harley-Davidson Iron 883 have 5 variants ranging from 1199000 to 1199000. Iron 883 is powered by a 2 cylinder, 883 cc, Air-Cooled Evolution. It is able to produce 68 Nm @ 4750 rpm torque and 50.78 PS @ 6000 rpm power.

Harley-Davidson Iron 883 Safety Features

This Cruiser bike comes loaded with Radial Tyres, LED Turn Signal, Pass Light, ABS - Anti-lock braking system from safety point of view.

Harley-Davidson Iron 883 Weight & Height

The seat height of Harley-Davidson Iron 883 is 760 mm and the kerb weight is 256 kg. In other dimensions Iron 883 has 2185 mm Length, 850 mm Width, 1140 mm Height, 1515 mm Wheelbase, 140 mm Ground Clearance, 12.5 Litres Fuel Tank Capacity , 2.64 Litres Engine Oil Capacity, Cruiser Body Type.

Comfort in Harley-Davidson Iron 883

From Comfort perspective, Iron 883 have Pillion Footrest, Low Battery Indicator, Low Oil Indicator, Analogue and Digital Console Type, Luggage Space, Engine Kill Switch, Single bar Handle Type, Single Seat Seat Style, 2185 Instrument Console, Electric Start Start Type.

Harley-Davidson Iron 883 Body

Harley-Davidson Iron 883 has 39 mm Showa suspensions with 100/90-B19 front tyre and Coil Over Preload Dual Adjustable suspensions with 150/80-B16 rear tyre. It comes with a Mild Steel Tubular Frame frame and Alloy.

Harley-Davidson Iron 883 Alternatives

Main Competitors of Iron 883 bike are Triumph Bonneville Bobber, Triumph Bonneville Speedmaster, Ducati Scrambler 800, Harley-Davidson Nightster, Triumph Bonneville T120, Kawasaki Ninja ZX 6R, Triumph Tiger 850 Sport, Ducati Scrambler NightShift, Ducati Scrambler Full Throttle, BMW F 900 XR.

Keep scrolling to explore detailed configuration, features and technical specs of Iron 883.
Key HighlightsHarley-Davidson Iron 883
Engine Capacity883 cc
Power50.78 PS @ 6000 rpm
Seat Height760 mm
Weight256 kg
Read more

Explore more on Harley-Davidson Iron 883

Harley-Davidson Iron 883
₹ 11.99 Lakh *
(Price before discontinued)
Harley-Davidson Iron 883 is Discontinued.

Key Specifications of Iron 883

Displacement883 cc
Max Torque (nm@rpm)68 Nm @ 4750 rpm
Max Power (bhp @ rpm)50.78 PS @ 6000 rpm
Weight256 kg
Number of Cylinders2
Read more
Ad

Detailed Specifications of Harley-Davidson Iron 883

Select Variants

Engine & Transmission

IgnitionCDI
Spark Plugs2 Per Cylinder
Gear Shifting Pattern1 Down 4 Up
Engine Capacity883 cc
Engine TypeAir-Cooled Evolution
No. of Cylinders2
No. of valves per cylinder2
Transmission TypeManual
Charging TimeV-Twin
Fast ChargingMild Steel Tubular Frame
Range292 km/charge
Top Speed170 kmph
Charging SocketNo
Motor PowerNo
Cooling typeAir Cooled
Max Power 50.78 PS @ 6000 rpm
Bore x Stroke76.2 x 97.8 mm
ConfigurationV-Twin
Max Torque68 Nm @ 4750 rpm
Mileage (Claimed)22 kmpl
Number of Gears5 Speed
FuellingFuel Injection

Safety

Side Stand AlarmNo
Radial TyresYes
AHO (Automatic Headlight On)No
Turn SignalLED
Pass LightYes
Pillion GrabrailNo
ABS - Anti-lock braking system Yes
Brake AssistNo
Traction Control SystemNo
Slipper ClutchNo
Power ModesNo

Comfort & Convenience

Under Seat StorageNo
Pillion FootrestYes
Low Battery IndicatorYes
Geo FencingNo
Average Speed IndicatorNo
Riding ModesNo
Call/SMS AlertsNo
Service Reminder IndicatorNo
Low Oil IndicatorYes
Front Storage BoxNo
Pillion BackrestNo
GPS & NavigationNo
Console TypeAnalogue and Digital
Luggage SpaceYes
Engine Kill SwitchYes
Handle TypeSingle bar
Seat StyleSingle Seat
Instrument Console2185
Side Stand IndicatorNo
Start TypeElectric Start
Distance to Empty IndicatorNo
USB Charger PortNo

Brakes, Suspension & Tyres

Rear Tyre Pressure (Rider)40 psi
Rear Wheel Size19 inch
Braking SystemDual Channel ABS
Front Wheel Size19 inch
Rear Suspension Preload Adjuster40 psi
Rear Tyre Pressure (Rider & Pillion)40 psi
Front Tyre Pressure (Rider)19 inch
Wheel TypeAlloy
Front Suspension39 mm Showa
Rear SuspensionCoil Over Preload Dual Adjustable
Front Tyre Size100/90-B19
Rear Tyre Size150/80-B16
Rear TypeDisc
Tubeless TyresYes
Front TypeDisc
Tyre Size Spare256
Rear Disc/Drum Size292 mm

Dimensions & Capacity

Length2185 mm
Width850 mm
Height1140 mm
Wheelbase1515 mm
Ground Clearance140 mm
Fuel Tank Capacity 12.5 Litres
Engine Oil Capacity2.64 Litres
Body TypeCruiser
Seat Height760 mm
Unladden/Kerb Weight256 kg

Exterior

Daytime Running LightsYes
LED headlightDual Channel ABS

Instrumentation

Fuel level guageDigital
Gear Indicator140
TachometerNo
SpeedometerAnalogue
OdometerDigital

Warranty

Basic Warranty2 Years/Unlimited kms

Entertainment & Communication

MID (Multi Info Display)No

Body & Suspension

Frame TypeMild Steel Tubular Frame
