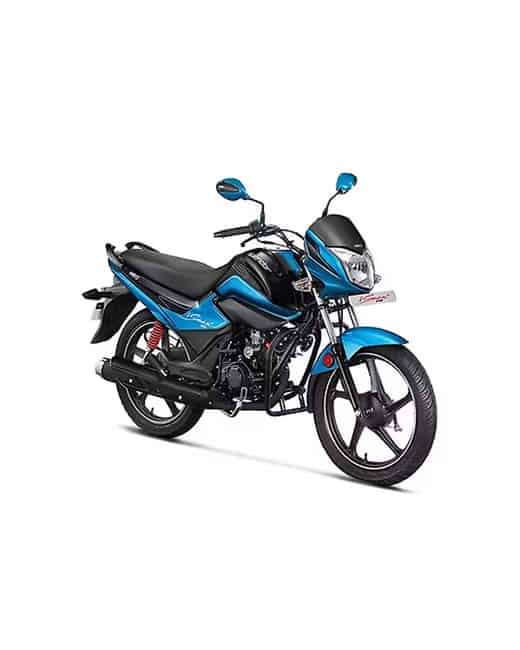

Hero Splendor Ismart 2016-18 Specifications

Hero Splendor Ismart 2016-18 have 2 variants ranging from 55837 to 56280. Splendor Ismart 2016-18 is powered by a 1 cylinder, 113.2 cc, Air-cooled& 4-stroke& Single Cylinder& OHC. It is able to produce 9.89 Nm @ 5500 rpm torque and 9 bhp @ 7500 rpm power.

Hero Splendor Ismart 2016-18 Safety Features

This Street bike comes loaded with Pass Light, Pillion Grabrail, AHO (Automatic Headlight On), ABS - Anti-lock braking system , Wet Multiplate Slipper Clutch from safety point of view.

Hero Splendor Ismart 2016-18 Weight & Height

The seat height of Hero Splendor Ismart 2016-18 is 799 mm and the kerb weight is 116 kg. In other dimensions Splendor Ismart 2016-18 has 2048 mm Length, 726 mm Width, 1110 mm Height, 1270 mm Wheelbase, 180 mm Ground Clearance, 9.5 Litres Fuel Tank Capacity , Air-cooled, 4-stroke, Single Cylinder, OHC Litres Engine Oil Capacity, Commuter Body Type.

Comfort in Hero Splendor Ismart 2016-18

From Comfort perspective, Splendor Ismart 2016-18 have Pillion Footrest, Single Seat Style, 2048 Instrument Console, 1110 Handle Type, Electric Start Start Type, Air Cooled Console Type, Engine Kill Switch.

Hero Splendor Ismart 2016-18 Body

Hero Splendor Ismart 2016-18 has Telescopic Hydraulic Shock Absorbers suspensions with 80/100 R18 front tyre and 5-step Adjustable Hydraulic Shock Absorbers suspensions with 80/100 R18 rear tyre. It comes with a Tubular Double Cradle Frame frame and Alloy.

Hero Splendor Ismart 2016-18 Alternatives

Main Competitors of Splendor Ismart 2016-18 bike are Hero HF Deluxe, Hero Splendor Plus, Honda Shine 100, TVS Sport, Honda Shine, Hero Splendor Plus Xtec, Hero HF 100, Honda SP 125, Bajaj Platina 100, Hero Super Splendor.

Keep scrolling to explore detailed configuration, features and technical specs of Splendor Ismart 2016-18.
Key HighlightsHero Splendor Ismart 2016-18
Engine Capacity113.2 cc
Power9 bhp @ 7500 rpm
Seat Height799 mm
Weight116 kg
Read more

Explore more on Hero Splendor Ismart 2016-18

Hero Splendor Ismart 2016-18
₹ 55,837 - ₹ 56,280 *
(Price before discontinued)
Hero Splendor Ismart 2016-18 is Discontinued.

Key Specifications of Splendor Ismart 2016-18

Number of gears4 Speed
Seat Height799 mm
Mileage55 kmpl
Fuel Tank Capacity9.5 Litres
Kerb Weight116 kg
Read more
Ad

Detailed Specifications of Hero Splendor Ismart 2016-18

Select Variants

Engine & Transmission

IgnitionNo
Spark PlugsYes
Gear Shifting PatternYes
Engine Capacity113.2 cc
Engine TypeAir-cooled& 4-stroke& Single Cylinder& OHC
No. of Cylinders1
No. of valves per cylinder2
Transmission TypeManual
Range522.5 km/charge
Top Speed87 kmph
FuellingFuel Injection
Cooling typeAir Cooled
Max Power 9 bhp @ 7500 rpm
Number of Gears4 Speed
Charging SocketNo
Max Torque9.89 Nm @ 5500 rpm
Mileage (Claimed)55 kmpl

Safety

Side Stand AlarmNo
Pass LightYes
Pillion GrabrailYes
Hazard Warning SwitchNo
AHO (Automatic Headlight On)Yes
Turn SignalNo
Radial TyresNo
Hazard Warning IndicatorNo
ABS - Anti-lock braking system Yes
Brake AssistNo
Power ModesNo
Slipper ClutchWet Multiplate
Traction Control SystemNo

Brakes, Suspension & Tyres

Front Tyre Pressure (Rider & Pillion)25 psi
Wheel TypeAlloy
Front Disc Size130
Rear Tyre Pressure (Rider)28 psi
Rear Wheel Size18 inch
Front Tyre Pressure (Rider)25 psi
Braking SystemIBS
Front Wheel Size18 inch
Rear Tyre Pressure (Rider & Pillion)41 psi
Front SuspensionTelescopic Hydraulic Shock Absorbers
Rear Suspension5-step Adjustable Hydraulic Shock Absorbers
Front Tyre Size80/100 R18
Rear Tyre Size80/100 R18
Tyre Size SpareNo
Rear TypeDrum
Front TypeDrum
Tubeless TyresYes
Rear Disc/Drum Size130 mm

Comfort & Convenience

Call/SMS AlertsNo
Service Reminder IndicatorNo
Low Battery IndicatorNo
Pillion BackrestNo
Under Seat StorageNo
Front Storage BoxNo
Low Oil IndicatorNo
Average Speed IndicatorNo
Pillion FootrestYes
Geo FencingNo
Riding ModesNo
GPS & NavigationNo
Seat StyleSingle
Luggage SpaceNo
USB Charger PortNo
Instrument Console2048
Side Stand IndicatorNo
Distance to Empty IndicatorNo
Handle Type1110
Shutter LockNo
Start TypeElectric Start
Console TypeAir Cooled
Engine Kill SwitchYes

Instrumentation

Riding Modes SwitchNo
Touch Screen DisplayNo
Fuel level guageDigital
Gear IndicatorNo
TachometerNo
SpeedometerAnalogue
OdometerDigital

Dimensions & Capacity

Length2048 mm
Width726 mm
Height1110 mm
Wheelbase1270 mm
Ground Clearance180 mm
Fuel Tank Capacity 9.5 Litres
Engine Oil CapacityAir-cooled, 4-stroke, Single Cylinder, OHC Litres
Body TypeCommuter
Seat Height799 mm
Unladden/Kerb Weight116 kg

Exterior

Daytime Running LightsNo
LED headlightNo

Entertainment & Communication

MID (Multi Info Display)No

Body & Suspension

Frame TypeTubular Double Cradle Frame
