Car Chassis: Everything You Need to Know About It

You might not be familiar with all the mechanical details of an automobile unless you are a car fanatic. However, being aware of them might help you comprehend the actual capabilities and restrictions of an automobile you want to purchase. One of the crucial aspects of a car's technical design is its chassis. This article describes various automotive chassis types and how they affect a car's performance.

What is a Car's Chassis?

The main support structure of a car is its chassis, which serves in the same way as the skeleton. It's another name for something that resembles a car frame. As a result, a car's entire body is structurally supported by the chassis, by definition.

The Functions and Roles of a Car Chassis

• It helps to support the weight of the car.
• Offers stability and room for setting up other car components.
• Carries and supports the extra weight brought on by the car's passengers and cargo.
• When a car is traveling on difficult roads or uneven surfaces, it absorbs any shock or collision.
• It controls the extra strain placed on the vehicle when speeding and braking.

Car Chassis Types

There are different types of chassis, each with a distinctive design and method for attaching other components like its engine and body.

Monocoque Chassis

This form of car chassis is currently the most extensively employed solution in the construction of vehicles. The term designates a particular shape that includes the top of the car as well as the structure itself. All of the components that are mechanical and other components are made up of a single body structure.

As a result, the frame construction still supports parts like the outer panels, seats, suspension, engine, and gearbox. It makes it possible to maintain the lightweight and compact design of the entire vehicle. This is why small and compact hatchbacks frequently have a monocoque chassis.

Newer compact SUVs (Sport Utility Vehicles) can be built on a monocoque vehicle chassis because it is also thought to be extremely safe.

Benefits

• A monocoque chassis is an ideal choice for tiny vehicle buildings because of its lightweight and compact design.
• The chassis's single-shell construction makes it simple to handle dynamic forces and keep stability while turning.
• The cage-like architecture increases both the car's and its occupants' security.
• The lightweight design makes it possible to build fuel-efficient cars that are affordable.

Drawbacks

• A monocoque chassis becomes stiff due to the single-body structure, which lowers the car's off-roading potential.
• If necessary, the single-shell structure is challenging to repair.

Tubular Chassis

This technology is typically employed in racing cars because it is safe in collisions. The tubular chassis involves a structure in the same way as a ladder frame chassis, but, in this case, the parts holding the vehicle's body hold more than just the cars chassis. Due to its exceptional safety, tubular chassis, a three-dimensional variant of ladder chassis, are mostly employed in performance cars. Tubular chassis, which are uncommon in passenger automobiles, are considerably stronger than ladder chassis, and they make use of stronger structures behind the doors to achieve more consolidated strength.

 Benefits

• In comparison to other frames of comparable weight, it delivers greater stiffness.
• This chassis's balanced rigidity-to-weight ratio enables the cars to be both sturdy and light.

Drawbacks

• Tubular frame layouts are intricate and difficult to produce using standard techniques.
• Because tubular chassis cannot be mass-produced, construction takes a long time.
• Manufacturers are unable to produce passenger automobiles using this kind of chassis.
• Because of the way this chassis is built, the floor is higher, which makes it more challenging to reach the cabin.

Also Read: Tata Punch CNG 'Kitna Deti Hai' - Official Mileage Figures Revealed

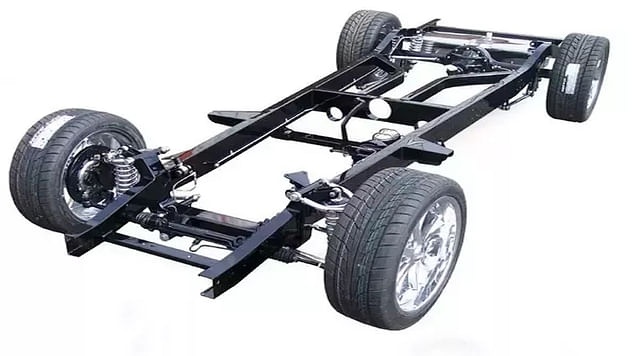

Ladder Frame Chassis

The ladder frame chassis is among the earliest types of chassis. It is still used by many commercial and off-road cars. Two long beams held up by additional shorter beams form such a structure. For example, it is used in the Ford Transit model. Its ability to be produced with ease not only contributed to its current popularity but also facilitated its widespread production. Because ladder frame chassis are so heavy, they are typically utilized for trucks that haul huge loads. The fact that this solution is so heavy is one reason why it is growing less and less popular.

Benefits

• It is really simple to put together a ladder frame.
• Ladder frames are practical for various types of car bodies because the chassis and cabin are separate constructions.
• The car's off-roading skills are improved by the flexible and agile chassis.
• This frame separates the road from the cabin, making for a less noisy and more relaxing driving experience.

Drawbacks

• Driving demands more work and focus due to the structure of the car being higher.
• Hatchbacks and sports vehicles cannot use the heavier components of this vehicle's chassis.

Backbone Chassis

The backbone chassis gets its name after the shape it reflects, just like the ladder frame chassis. The driveshaft is encircled by a cylindrical tube. Skoda Rapid, one of the most well-known automobiles, uses a backbone chassis.

In this case, the upper and lower suspensions are connected by a rectangular tube with a rectangle cross-section that runs through the middle of the entire construction. For instance, this approach is easily applied in off-road vehicles because it offers several benefits connected to vehicle stability.

Benefits

• Better communication between the axles and the ground is provided by this frame arrangement.
• Compared to other chassis alternatives, the car with this chassis is more stable.
• This frame can successfully withstand impacts to the ground while off-roading.
• It can tolerate twists more effectively than a ladder frame because of its stiffness.

Drawbacks

• The driveshaft is protected by a cylindrical tube; therefore, the entire backbone must be opened for repair.
• The backbone chassis raises the price of an automobile because of the high production costs.
